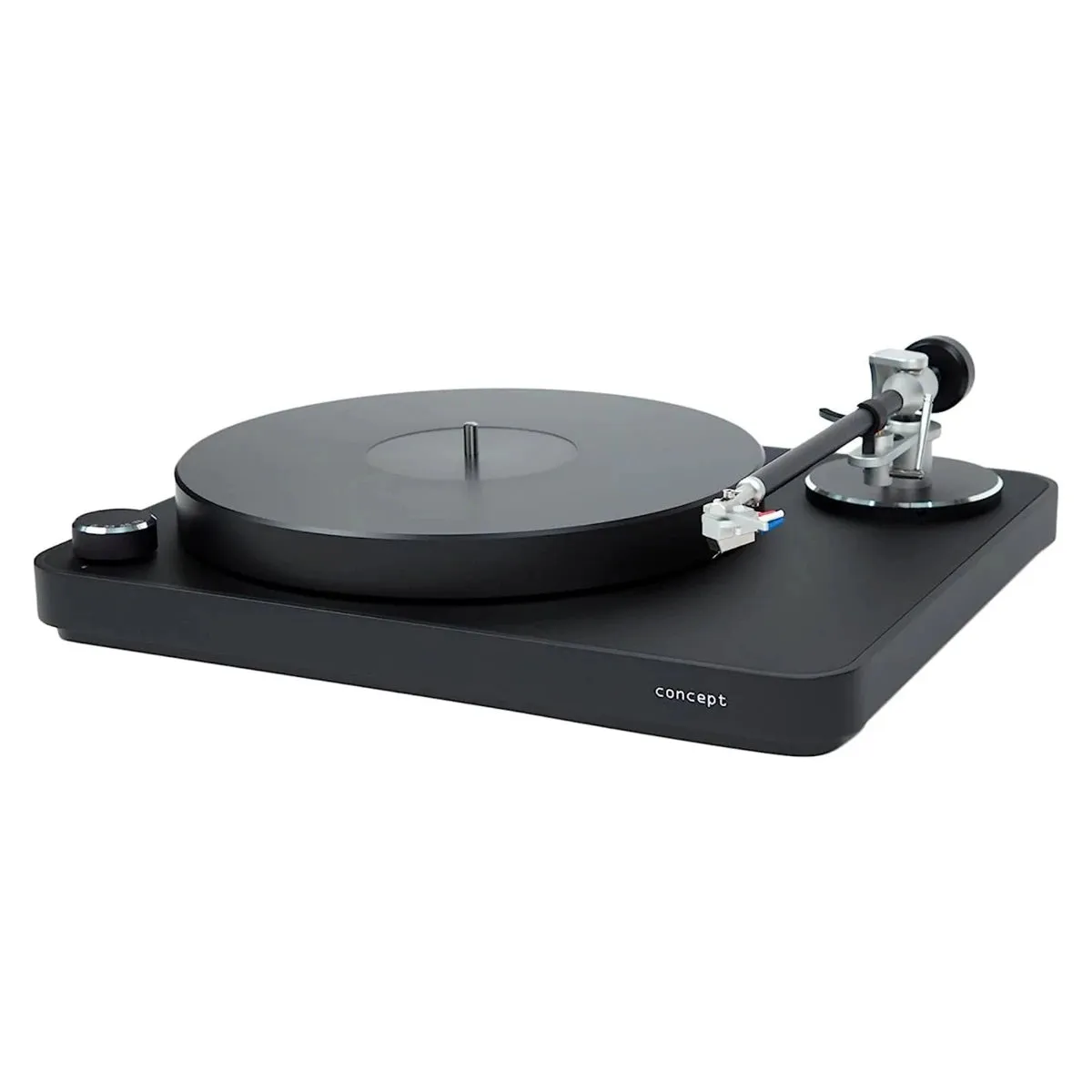

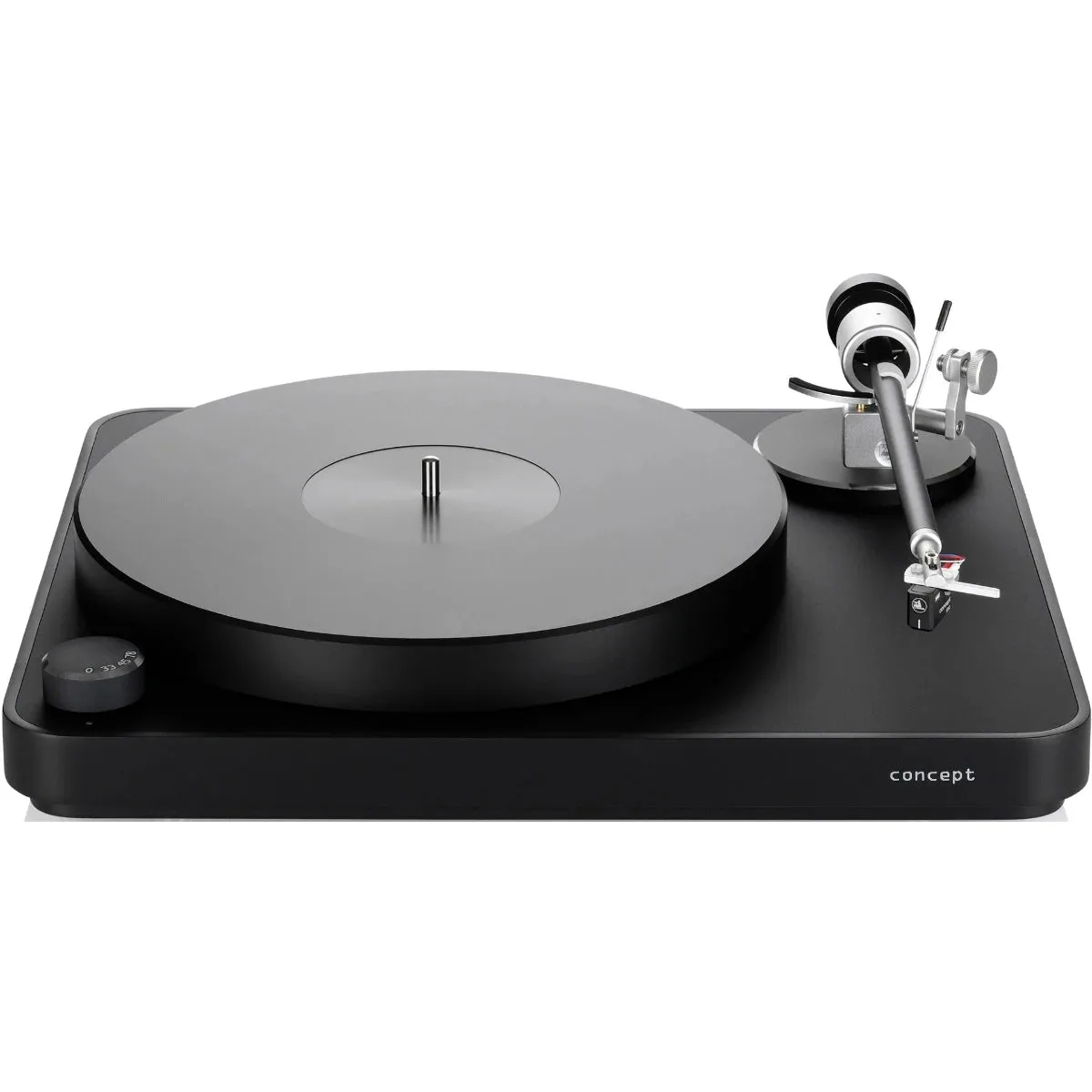

Beneath the sleek, contemporary exterior is a level of technical sophistication unique to Clearaudio.
The concept's body is carefully crafted from medium-density wood fiber (or, optionally, pressure-formed solid wood) with a selection of smart made-to-match surface finishes. The body's upper layer incorporates a special high-tech stained plastic compound designed to minimize unwanted resonance.
The DC motor is fed by an external voltage-stabilized power supply and is completely decoupled from the turntable's body to ensure no mechanical interference.
The concept tonearm features a magnetic bearing that is friction-free for extremely low distortion and superb performance. The package is completed with the high-quality CONCEPT MM or CONCEPT MC cartridge (Upgrade possible).
Innovative, high-performing, user-friendly and affordable. Now that's what we call an unbeatable concept.
Warranty:
1-year manufacturer's warranty
Features:
- Precision CNC-machined chassis with resonance-damping properties.
- High-quality moving magnet (MM) cartridge pre-installed for superior sound performance.
- Belt-driven motor with a decoupled DC motor for silent operation.
- Aluminum sub-platter for stable rotation and precise speed control.
- Adjustable speed for 33 ⅓, 45, and 78 RPM playback.
- Innovative friction-free magnetic tonearm for optimal tracking.
- Plug-and-play design with factory-set tracking force and anti-skating.
Video Review:
Technical Specification:
| Brand | Clear-Audio |
| Model | Concept |
| Color | black |
| CONSTRUCTION DETAILS | Resonance-optimised bodywork; body comprises medium-density wood fibre or |
| pressure-formed solid wood; upper layer incorporates high-tech satined plastic compound. | |
| SPEED RANGES | Electronic speed selection, 33 â…“, 45 rpm (78 rpm optional) |
| DRIVE UNIT | Decoupled and resonance damped DC motor, flat belt-drive and plug-in |
| power supply unit designed for worldwide use with all networks and power frequencies. | |
| BEARING | Polished and tempered steel shaft in a sintered bronze housing, running on a Teflon thrust-pad. |
| PLATTER | Synthetic material, CNC precision milled surface; |
| 30mm / 1.18 inch thickness; aluminum sub-platter | |
| SPEED VARIATION | ± 0.05 % |
|
POWER CONSUMPTION
|
Max. consumption: 1.5 Watt
Consumption in operation: 0.5 Watt
Off mode: 0.0 Watt
|
|
Dimension
|
420 x 350 x 125 mm |
|
Weight
|
7.5 kg |
